There are several obstacles when creating a MP3 player. Especially if it is a special MP3 player like the Hörbert. There are some other pages that address recreating the Hörbert (here, and here), but there are still missing some information. So let's get started with the first challenge: the components.

1. Components

We need

An Arduino Uno R3 board

A MP3 shield

A rotary potentiometer

A turning knob

A toggle switch

A battery holder

A speaker

A protective grille

Some buttons

Some caps

Some resistors

A dot matrix/strip grid board

Some wires

Some shrink tube

Some screws, nuts and spacers/standoffs

2. MP3 Shield

To put the MP3 Shield on the Arduino board, soldering of headers is needed (https://learn.adafruit.com/adafruit-music-maker-shield-vs1053-mp3-wav-wave-ogg-vorbis-player/assembly).

The VS1053 library is downloaded and installed to obtain access to the "MP3 Shield" (https://learn.adafruit.com/adafruit-music-maker-shield-vs1053-mp3-wav-wave-ogg-vorbis-player/installing-software).

With the example sketch "player_simple" the MP3 Shield can be tested. Care must be taken that the "shield-example object" is created instead of the "breakout-example object".

The output of the Serial Monitor shows the success.

3. Buttons and dot matrix/strip grid board

I want to use just one analog pin to recognize which button is pressed. Therefore several resistors are needed. At the push of a button, a parallel circuit emerges, several resistors are skipped and a voltage change occurs. The voltage change can be recognized at the analog pin, the value indicates the button.

The voltage values for the 11 buttons are shown here:

According to this table the wire layout is created. The wires are connected with the Arduino board/MP3 shield. Red with the 5V pin to supply the buttons with power, black with GND pin, and white with an analog pin to get the signal of the buttons.

Buttons and resistors will be soldered at the back.

Some wires can be seen at the front.

The arduino board is screwed onto the dot matrix/strip grid board, also the battery holder.

Not only the buttons need a connection to the 5V pin, also the potentiometer needs to be supplied with power. Therefore another wire will be used to tap the 5V power supply.

4. Connecting the other components

The potentiometer has 3 pins. On each pin wires with male connectors are soldered. The left wire (red) is connected to the soldered 5V power supply wire. The middle wire (yellow) is connected to analog pin of the arduino board / mp3 shield. The right wire (black) is connected to a GND pin of the arduino board / mp3 shield.

The battery holder is connected to the arduino power jack. The power supply line is cut through to connect the switch button.

Two wires are soldered on the speaker. Then the wires are connected to the MP3 shield.

And so far that is the result

5. Housing

The hardware needs now some housing. Potentiometer and switch button are mounted on the top of the housing. The dot matrix/strip grid board and the speaker with the protective grille are mounted on the front. Through the back the screwed components can be accessed.

6. Sketch

The sketch let the potentiometer act as volume control, recognizes the buttons and goes to the start, next, previous, first or last mp3 track or fast-forwards the mp3 track. The current mp3 track will also be remembered, so next time the Audino is switched on the remembered track will be played again.

#include <SPI.h>
#include <Adafruit_VS1053.h>
#include <SD.h>

#define SHIELD_CS     7      // VS1053 chip select pin (output)
#define SHIELD_DCS    6      // VS1053 Data/command select pin (output)
#define DREQ          3      // VS1053 Data request, ideally an Interrupt pin
#define CARDCS        4      // Card chip select pin
Adafruit_VS1053_FilePlayer musicPlayer =
    Adafruit_VS1053_FilePlayer(SHIELD_CS, SHIELD_DCS, DREQ, CARDCS);

// VS1053 play speed parameter
#define para_playSpeed 0x1E04

// constants won't change

// the number of the pin that is used for the pushbuttons
const int buttonsPin = A0;

// the pin of the potentiometer that is used to control the volume
const int volumePin = A1;

// wait before next click is recognized
const int buttonPressedDelay = 1000;


// variables will change

byte currentFolder = 1;
unsigned int currentFile = 0;
unsigned int numberOfFiles[] = { 0, 0, 0, 0, 0, 0, 0, 0, 0, 0 };

// the current volume level, set to min at start
byte volumeState = 254;

// last button that was pressed
byte lastPressedButton = 0;
// is the last pressed button released
boolean released = true;
// remember if the back button was pressed last time
byte lastReleasedButton = 0;
// the time at the back button was pressed last time
long lastBackButtonTime = 0;

char currentTrackFileName[] = "/0/current.txt";

// the setup routine runs once when you turn the device on or you press reset
void setup()
{
    // disable LED L
    pinMode(13, OUTPUT);
    digitalWrite(13, LOW);

    // initialize serial communication at 9600 bits per second
    //Serial.begin(9600);

    // initialise the music player
    if (!musicPlayer.begin())
    {
        //Serial.println("VS1053 not found");
        while (1);  // don't do anything more
    }

    // initialise the SD card
    SD.begin(CARDCS);


    // If DREQ is on an interrupt pin (on uno, #2 or #3) we can do background
    // audio playing
    musicPlayer.useInterrupt(VS1053_FILEPLAYER_PIN_INT);  // DREQ int

    musicPlayer.sineTest(0x44, 100);    // Make a tone to indicate VS1053 is working

    // read the number of tracks in each folder
    for (byte i = 0; i < 10; i++)
    {
        String temp = "/";
        temp.concat(i);
        char filename[3];
        temp.toCharArray(filename, sizeof(filename));
        numberOfFiles[i] = countFiles(SD.open(filename));
        //Serial.print(filename);
        //Serial.print(": ");
        //Serial.println(numberOfFiles[i]);
    }

    // read remembered track
    if (SD.exists(currentTrackFileName))
    {
        File file = SD.open(currentTrackFileName, FILE_READ);
        if (file)
        {
            currentFolder = file.readStringUntil('\n').toInt();
            currentFile = file.readStringUntil('\n').toInt() - 1;
        }
        file.close();
    }


    delay(100); // init delay
}


// counts the number of files in directory
unsigned int countFiles(File dir)
{
    unsigned int counter = 0;
    while (true)
    {
        File entry = dir.openNextFile();
        if (!entry)
        {
            // no more files
            break;
        }

        counter++;
        entry.close();
    }
    dir.close();

    return counter;
}

// the loop routine runs over and over again forever
void loop()
{
    // play next song if player stopped
    if (musicPlayer.stopped())
    {
        playNext();
    }

    // check the volume and set it
    checkVolume();

    // check if a button is pressed and perform some action
    checkButtons();

    delay(1); // delay in between reads for stability
}


// checks the value of the potentiometer
// if it has changed by 2 then set the new volume
void checkVolume()
{
    // read the state of the volume potentiometer
    int read = analogRead(volumePin);

    // set the range of the volume from max=0 to min=254
    // (limit max volume to 20 and min to 60)
    byte state = map(read, 0, 1023, 20, 60);


    // recognize state (volume) changes in steps of two
    if (state < volumeState - 1 || state > volumeState + 1)
    {
        // remember the new volume state
        volumeState = state;

        // set volume max=0, min=254
        musicPlayer.setVolume(volumeState, 254);

        // print out the state of the volume
        //Serial.print(volumePin);
        //Serial.print(" volume ");
        //Serial.println(volumeState);
    }
}

// check if some button is pressed
// play first track, if button is not pressed last time
// play next track, if a button is pressed again
void checkButtons()
{
    // get the pressed button
    byte pressedButton = getPressedButton();

    // if a button is pressed
    if (pressedButton != 0)
    {
        //Serial.print("Taste: ");
        //Serial.println(pressedButton);

        // if a track/play list button is pressed
        if (pressedButton < 10 && released)
        {
            musicPlayer.stopPlaying();
            if (currentFolder == pressedButton)
            {
                playNext();
            }
            else
            {
                currentFolder = pressedButton;
                currentFile = 1;
                playCurrent();
            }

        }
        // if a function button is pressed
        else
        {
            if (pressedButton == 10 && released)
            {
                musicPlayer.stopPlaying();
                long time = millis();

                // this is the second press within 1 sec., so we
                // got to the previous track
                if (lastReleasedButton == 10 &&
                    ((time - lastBackButtonTime) < buttonPressedDelay))
                {
                    playPrevious();
                }
                else
                {
                    playCurrent();
                }
                lastBackButtonTime = time;
            }
            else if (pressedButton == 11 && released)
            {
                // increase play speed
                musicPlayer.sciWrite(VS1053_REG_WRAMADDR, para_playSpeed);
                musicPlayer.sciWrite(VS1053_REG_WRAM, 3);
                //Serial.println("increase speed");
            }
        }

        released = false;
        lastReleasedButton = pressedButton;
    }
    else
    {
        released = true;

        // reset play speed
        if (lastPressedButton == 11)
        {
            musicPlayer.sciWrite(VS1053_REG_WRAMADDR, para_playSpeed);
            musicPlayer.sciWrite(VS1053_REG_WRAM, 1);
        }
    }

    // remember pressed button
    lastPressedButton = pressedButton;
}


void playPrevious()
{
    currentFile--;
    if (currentFile < 1)
    {
        currentFile = numberOfFiles[currentFolder];
    }
    playCurrent();
}

void playNext()
{
    currentFile++;
    if (currentFile > numberOfFiles[currentFolder])
    {
        currentFile = 1;
    }
    playCurrent();
}

void playCurrent()
{
    if (numberOfFiles[currentFolder] > 0)
    {
        rememberCurrentTrack();

        String temp = "/";
        temp.concat(currentFolder);
        temp.concat("/");
        temp.concat(currentFile);
        temp.concat(".mp3");
        char filename[temp.length() + 1];
        temp.toCharArray(filename, sizeof(filename));
        musicPlayer.startPlayingFile(filename);

        //Serial.print("Play ");
        //Serial.println(filename);
    }
}

void rememberCurrentTrack()
{
    if (SD.exists(currentTrackFileName))
    {
        SD.remove(currentTrackFileName);
    }

    File file = SD.open(currentTrackFileName, FILE_WRITE);
    if (file)
    {
        file.println(currentFolder);
        file.println(currentFile);
    }
    file.close();
}


// returns 0 if no button is pressed,
// else the number of the pressed button is returned (1 - 11)
byte getPressedButton()
{
    int buttonsPinValue = analogRead(buttonsPin);
    byte pressedButton = 0;

    if (buttonsPinValue > 823)
    {
        // button 6 has a value of about 878
        pressedButton = 6;
    }
    else if (buttonsPinValue > 725)
    {
        // button 5 has a value of about 768
        pressedButton = 5;
    }
    else if (buttonsPinValue > 649)
    {
        // button 4 has a value of about 683
        pressedButton = 4;
    }
    else if (buttonsPinValue > 586)
    {
        // button 3 has a value of about 614
        pressedButton = 3;
    }
    else if (buttonsPinValue > 535)
    {
        // button 2 has a value of about 559
        pressedButton = 2;
    }
    else if (buttonsPinValue > 492)
    {
        // button 1 has a value of about 512
        pressedButton = 1;
    }
    else if (buttonsPinValue > 450)
    {
        // if no button is pressed the value is of about 473
        pressedButton = 0;
    }
    else if (buttonsPinValue > 400)
    {
        // button 8 has a value of about 427
        pressedButton = 11;
    }
    else if (buttonsPinValue > 340)
    {
        // button 10 has a value of about 372
        pressedButton = 10;
    }
    else if (buttonsPinValue > 267)
    {
        // button 9 has a value of about 307
        pressedButton = 9;
    }
    else if (buttonsPinValue > 178)
    {
        // button 8 has a value of about 228
        pressedButton = 8;
    }
    else if (buttonsPinValue > 0)
    {
        // button 7 has a value of about 128
        pressedButton = 7;
    }
    return pressedButton;
}

7. PC-Software

The Audino is now ready for use. On the micro SD card the folders "0", "1", "2", "3", "4", "5", "6", "7", "8", "9" must be created. Several mp3 tracks can be added to the folders 1 - 9. The mp3 tracks in each folder must be numbered consecutively (1.mp3, 2.mp3 ...). Hence just one channel is used the mp3 tracks should be in mono.

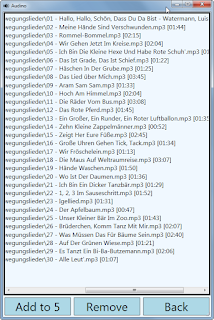

I created a PC-Software to simplify the copy process. The playlists can be planed and created.
